GCP Terraform architecture

Platform layers, services, Workload Identity, networking, and module dependencies for LangSmith self-hosted on GKE.

This page documents what the GCP Terraform modules provision and how the modules wire the resulting deployment together.

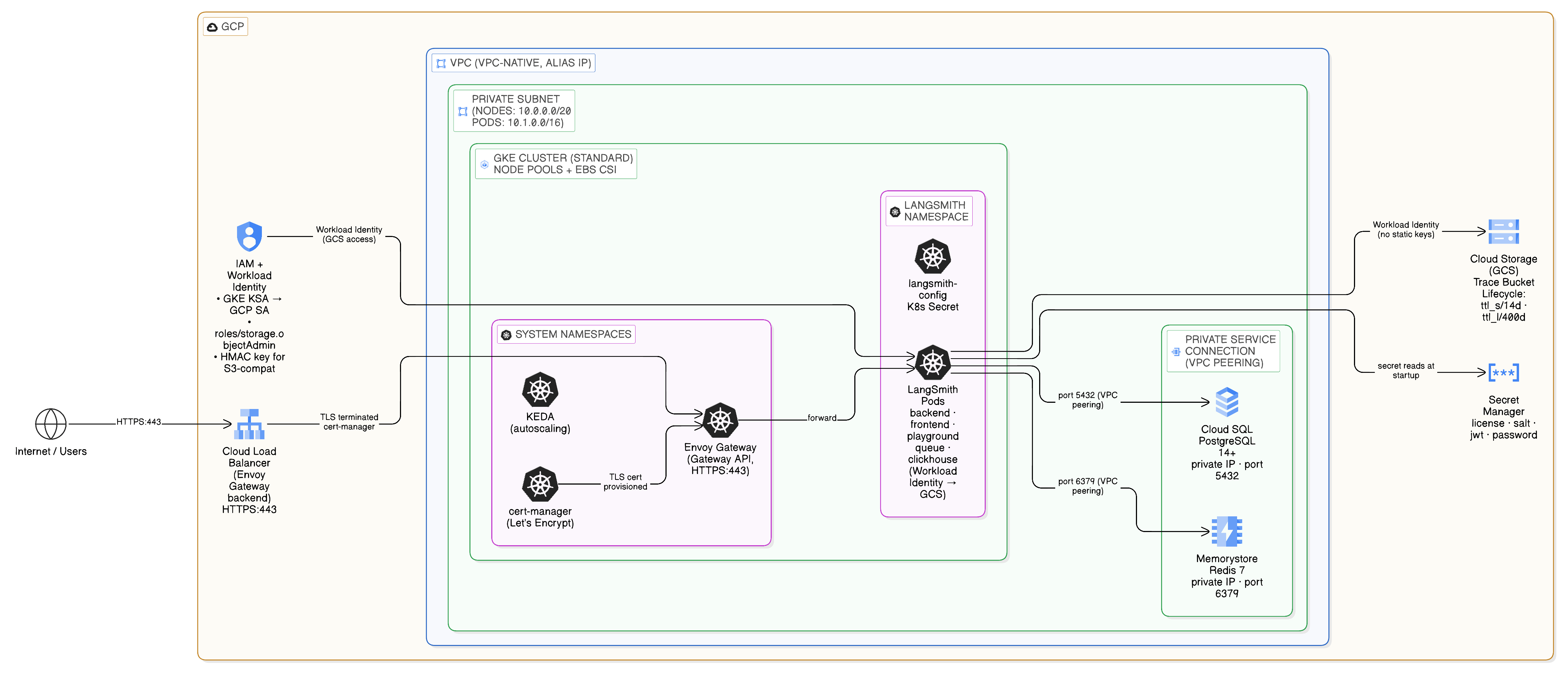

Platform layers

LangSmith on GCP deploys in up to five passes. Each pass adds a capability layer on top of the previous. All layers share the same GKE cluster and langsmith namespace.

Pass	Layer	What it adds
1	GCP infrastructure	VPC, GKE, Cloud SQL, Memorystore, GCS, K8s bootstrap, cert-manager, KEDA, Envoy Gateway
2	LangSmith base	frontend, backend, platform-backend, queue, ace-backend, clickhouse, playground
3	LangSmith Deployment	host-backend, listener, operator + per-deployment pods
4	Agent Builder	agent-builder-tool-server, agent-builder-trigger-server + deep-agent LGP
5	Insights + Polly	Clio analytics (ClickHouse-backed), Polly eval agent

Module descriptions

Module	Path	Purpose
networking	modules/networking/	VPC, subnet with secondary ranges, Cloud Router, Cloud NAT, private service connection for Cloud SQL and Memorystore
k8s-cluster	modules/k8s-cluster/	GKE Standard or Autopilot cluster, node pool with autoscaling, Workload Identity enabled
postgres	modules/postgres/	Cloud SQL PostgreSQL instance, HA standby replica, private IP, deletion protection
redis	modules/redis/	Memorystore Redis STANDARD_HA tier, private IP within VPC
storage	modules/storage/	GCS bucket with lifecycle rules for ttl_s/ (14 days) and ttl_l/ (400 days) prefixes
k8s-bootstrap	modules/k8s-bootstrap/	langsmith namespace, Kubernetes Secrets for Postgres and Redis URLs, cert-manager and KEDA Helm releases
ingress	modules/ingress/	Envoy Gateway Helm release, GatewayClass, HTTPRoute, optional HTTPS Gateway listener
iam	modules/iam/	GCP service accounts and Workload Identity bindings for GCS access (wired by default)
dns	modules/dns/	Cloud DNS managed zone and managed cert (optional, enable with enable_dns_module)
secrets	modules/secrets/	Secret Manager secret bundle (optional, enable with enable_secret_manager_module)

Deployment tiers

Light deploy (all in-cluster)

VPC
└── subnet (10.0.0.0/20 — GKE nodes only)
    No Cloud SQL or Memorystore — chart pods handle both

GKE Cluster
├── langsmith namespace
│   ├── frontend, backend, platform-backend, queue, ace-backend, playground
│   ├── clickhouse (in-cluster)
│   ├── postgres   (in-cluster)
│   └── redis      (in-cluster)
├── cert-manager
├── keda
└── envoy-gateway-system

GCS Bucket (trace payloads, always external)

Set in terraform.tfvars:

postgres_source   = "in-cluster"
redis_source      = "in-cluster"
clickhouse_source = "in-cluster"

Production (external managed services)

VPC
├── subnet (10.0.0.0/20 — GKE nodes, pods, services)
│   └── Secondary ranges: pods 10.4.0.0/14, services 10.8.0.0/20
└── Private service connection (VPC peering to Google managed network)
    ├── Cloud SQL PostgreSQL  (private IP, regional standby)
    └── Memorystore Redis     (private IP, STANDARD_HA tier)

GKE Cluster
├── langsmith namespace
│   ├── frontend, backend, platform-backend, queue, ace-backend, playground
│   └── clickhouse (in-cluster — use LangChain Managed for production scale)
├── cert-manager
├── keda
└── envoy-gateway-system

GCS Bucket (Workload Identity, no static keys)

Application core services

Service	Purpose	Port	HPA	Workload Identity	Depends on
langsmith-frontend	React UI	3000	1 to 10	No	backend, platform-backend
langsmith-backend	Main API (traces, runs, projects, API keys, feedback)	1984	3 to 10	Yes (GCS)	Postgres, Redis, ClickHouse, GCS
langsmith-platform-backend	Org and user management, auth, billing, settings	1986	1 to 10	Yes (GCS)	Postgres, Redis, GCS
langsmith-playground	LLM prompt playground UI	3001	1 to 10	No	backend
langsmith-queue	Trace ingestion worker (Redis to ClickHouse + GCS)	—	3 to 10 + KEDA	Yes	Redis, ClickHouse, GCS
langsmith-ingest-queue	Dedicated high-throughput ingestion worker	—	3 to 10 + KEDA	Yes	Redis, GCS
langsmith-ace-backend	Async compute (dataset runs, evaluations, background jobs)	—	1 to 5	No	Postgres, Redis
langsmith-clickhouse	Columnar store (trace spans, run metadata, eval results)	—	StatefulSet, single replica	No	500Gi premium-rwo PVC

In-cluster ClickHouse is dev/POC only (single pod, no replication, no backups). For production, use LangChain Managed ClickHouse or a self-managed external cluster.

One-time jobs

Job	Purpose
langsmith-backend-migrations	PostgreSQL schema migrations
langsmith-backend-ch-migrations	ClickHouse schema migrations
langsmith-backend-auth-bootstrap	Creates the initial org and admin account

LangSmith Deployment add-on

Service	Purpose	Workload Identity
langsmith-host-backend	LangGraph control plane API. Manages deployment lifecycle, serves deployment metadata.	Yes (GCS)
langsmith-listener	Watches host-backend for state changes, creates and updates LangGraphPlatform CRDs.	Yes (GCS)
langsmith-operator	Kubernetes operator. Reconciles LangGraphPlatform CRDs, creates and deletes Deployments and Services.	RBAC for Deployments and Services

Each LangGraph deployment created in the UI produces a Kubernetes Deployment in the langsmith namespace, with pods running as the langsmith-ksa ServiceAccount. That ServiceAccount must carry the iam.gke.io/gcp-service-account annotation, which deploy.sh applies idempotently.

GCP managed services

When postgres_source = "external" and redis_source = "external" (the recommended production setting), Terraform provisions:

Cloud SQL PostgreSQL

• Default size db-custom-2-8192 (2 vCPU, 8 GB), private IP, port 5432.
• REGIONAL availability with automatic failover.
• Holds orgs, users, projects, API keys, settings.
• Terraform writes the connection URL directly to the langsmith-postgres Kubernetes Secret.

Memorystore Redis

• Default 5 GB, STANDARD_HA tier, private IP, port 6379.
• Trace ingestion queue, pub/sub, short-lived cache.
• No auth token required. Access is controlled by VPC private IP only.
• Terraform writes the connection URL directly to the langsmith-redis Kubernetes Secret.

Cloud Storage bucket

• Trace payloads: large inputs and outputs, attachments.
• Accessed via the S3-compatible API (apiURL: https://storage.googleapis.com, engine: S3).
• HMAC keys are required for the S3-compatible API even with Workload Identity. Create one under Cloud Storage → Settings → Interoperability and pass them to Helm via config.blobStorage.accessKey and config.blobStorage.accessKeySecret.
• Lifecycle rules: ttl_s/ prefix (14 days default), ttl_l/ prefix (400 days default).
• Always required.

Secret Manager (optional module)

• Stores Postgres password and generated secrets (LangSmith secret key, JWT secret) when enable_secret_manager_module = true.
• Core secrets (langsmith-postgres, langsmith-redis) are always stored in Kubernetes Secrets by k8s-bootstrap regardless of this module. Secret Manager provides an additional durable store for secrets that must survive cluster recreation.

Cluster infrastructure

Service	Namespace	Installed by	Required for
Envoy Gateway	envoy-gateway-system	ingress module (install_ingress = true, default)	All ingress
KEDA	keda	k8s-bootstrap module when enable_langsmith_deployment = true	LangSmith Deployment add-on and later
cert-manager	cert-manager	k8s-bootstrap module when tls_certificate_source = "letsencrypt" or install_cert_manager = true	Let’s Encrypt TLS
External Secrets Operator	external-secrets	k8s-bootstrap module	Custom secret workflows (optional)

The Gateway resource is managed by Terraform; the HTTPRoute is managed by Helm. Do not delete the Gateway resource manually. GCP releases the external IP when the Gateway is deleted, and a new IP is issued on recreate.

Workload Identity

GKE pods access GCS through Workload Identity. The Kubernetes ServiceAccount is bound to a GCP service account via an IAM binding; pods receive temporary credentials with no static keys in Secrets or environment variables.

GKE pod
  └── Kubernetes ServiceAccount (annotated with iam.gke.io/gcp-service-account)
        └── IAM binding: roles/iam.workloadIdentityUser
              └── GCP Service Account
                    └── roles/storage.objectAdmin on the GCS bucket

Component	Annotation	Permissions
langsmith-backend	iam.gke.io/gcp-service-account: <gsa>	GCS storage.objectAdmin on the LangSmith bucket
langsmith-platform-backend	Same	GCS storage.objectAdmin
langsmith-queue	Same	GCS storage.objectAdmin
langsmith-ingest-queue	Same	GCS storage.objectAdmin
langsmith-host-backend	Same	GCS storage.objectAdmin
langsmith-listener	Same	GCS storage.objectAdmin
langsmith-ksa (operator pods)	Same	GCS storage.objectAdmin

The GSA is defined by the iam module and output as workload_identity_annotation. init-values.sh writes these annotations into values-overrides.yaml automatically.

GCS access via the S3-compatible API requires HMAC keys in addition to Workload Identity. Create the HMAC key under Cloud Storage → Settings → Interoperability and pass it to Helm.

Network topology

Range	CIDR	Used by
Subnet	10.0.0.0/20	GKE nodes
Pods	10.4.0.0/14	GKE pod IPs (secondary range)
Services	10.8.0.0/20	GKE ClusterIP services (secondary range)
Private service connection	/16 allocated by Google	Cloud SQL, Memorystore private IPs

Cloud SQL and Memorystore are accessed exclusively via private IP. The networking module establishes a private service connection (VPC peering to Google’s managed network) whenever postgres_source = "external" or redis_source = "external".

Traffic flow

Internet (HTTPS :443)
  ↓
Envoy Gateway  (envoy-gateway-system, external LoadBalancer IP)
  TLS terminated — cert-manager + Let's Encrypt or existing certificate
  │
  ├── /                     → frontend:80
  ├── /api/*                → backend:1984
  └── /api/v1/deployments/* → host-backend:1985  (LangSmith Deployment add-on)

Internal traffic (private IPs, never leaving VPC):
  backend       → Cloud SQL:5432    via private IP
  backend       → Memorystore:6379  via private IP
  backend       → GCS               via Workload Identity + HMAC keys
  host-backend  → K8s API           reads deployment pod status
  listener      → K8s API           reconciles Deployment CRDs
  operator      → K8s API           creates and manages deployment pods

Component to storage mapping

Component	PostgreSQL	Redis	ClickHouse	GCS
backend	Org config, run metadata	Ingestion queue	—	Trace objects
platform-backend	—	—	—	Blob routing
queue	—	Pops jobs	—	Writes trace blobs
clickhouse	—	—	Trace search index	—
host-backend	Deployment lifecycle state	—	—	—

Secret Manager integration

Without Secret Manager:

terraform.tfvars → terraform apply → kubernetes_secret (postgres, redis)

With Secret Manager:

terraform.tfvars → terraform apply → Secret Manager secrets
                                       → ESO (External Secrets Operator)
                                         → kubernetes_secret (langsmith namespace)

Terraform module graph

google_project_service (APIs enabled)
  └── module.networking
        ├── module.gke_cluster
        │     └── null_resource.wait_for_cluster
        │           ├── module.cloudsql      (count = postgres_source == "external")
        │           ├── module.redis         (count = redis_source    == "external")
        │           ├── module.storage
        │           ├── module.iam           (count = enable_gcp_iam_module)
        │           ├── module.secrets       (count = enable_secret_manager_module)
        │           ├── module.dns           (count = enable_dns_module)
        │           ├── module.k8s_bootstrap
        │           └── module.ingress       (count = install_ingress)
        └── (private_service_connection when external services)

LangSmith itself is not deployed by Terraform; the chart is installed in the application stage via helm upgrade --install.

Verification commands

# Cluster connectivity
gcloud container clusters get-credentials <cluster-name> --region <region> --project <project-id>
kubectl cluster-info
kubectl get nodes -o wide

# All LangSmith pods
kubectl get pods -n langsmith

# Envoy Gateway
kubectl get pods -n envoy-gateway-system
kubectl get svc -n envoy-gateway-system

# cert-manager
kubectl get pods -n cert-manager
kubectl get certificate -n langsmith

# KEDA (LangSmith Deployment add-on)
kubectl get pods -n keda

# Cloud SQL connectivity test
kubectl run psql-test --rm -it --image=postgres:15 -n langsmith -- \
  psql "postgresql://langsmith:<password>@<cloud-sql-private-ip>:5432/langsmith" -c "SELECT version();"

# Memorystore connectivity test
kubectl run redis-test --rm -it --image=redis:7 -n langsmith -- \
  redis-cli -h <redis-private-ip> ping

# GCS connectivity test
kubectl run gcs-test --rm -it --image=google/cloud-sdk -n langsmith -- \
  gsutil ls gs://<bucket-name>

---
